Permanent-Magnet Rotor Assemblies
GX Magnet has years of in-depth experience manufacturing permanent-magnet rotor assemblies. Our product portfolio covers a wide range of motor rotors, with custom manufacturing available per customer drawings. Every project is developed with consideration of operating principle, magnet topology, pole layout, shaft interface, retention method, rotational speed and acceptance requirements.
Project screening
A useful review starts with the machine operating principle, then defines the magnet system, mechanical interfaces and finished-assembly acceptance criteria.

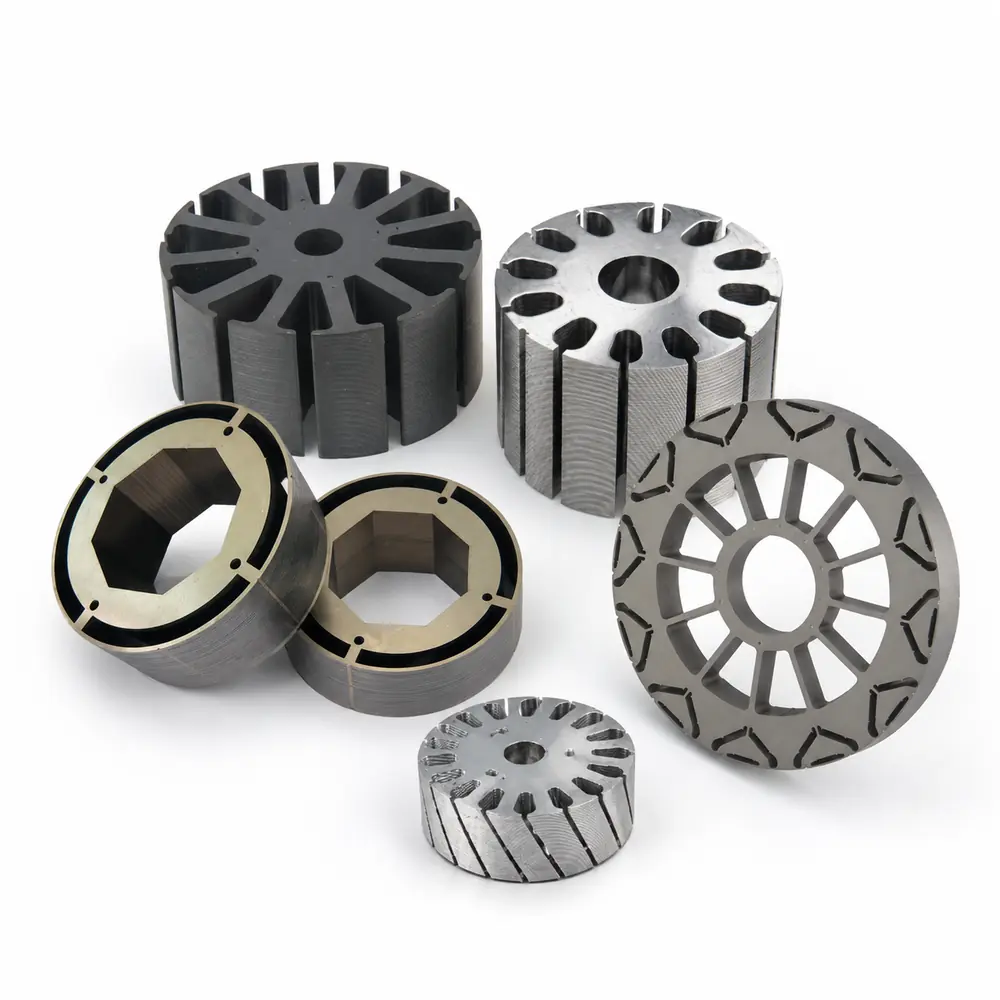

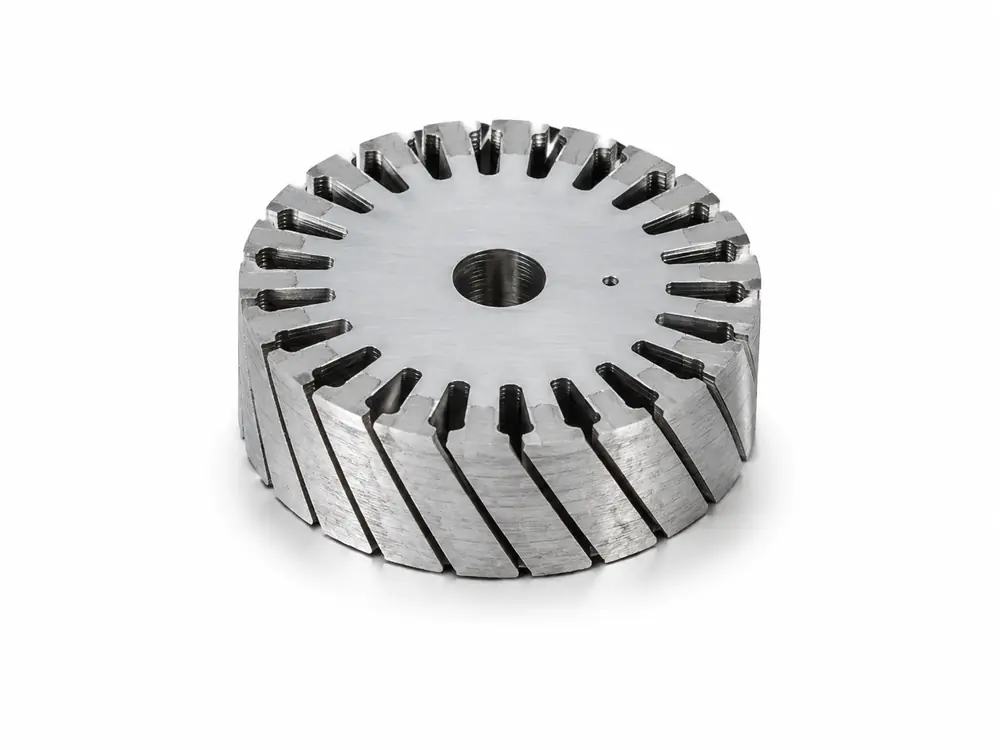

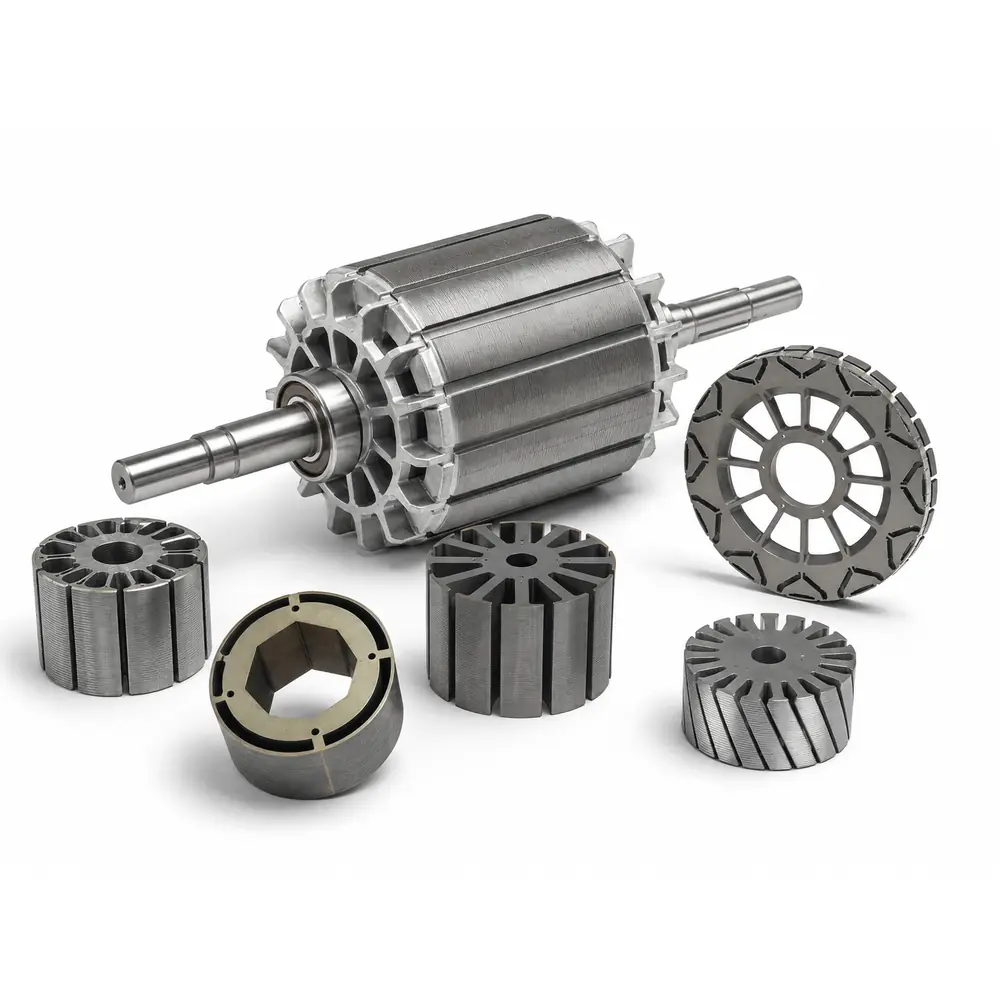

Rotor types by operating principle
Permanent-magnet rotors may share similar components, but their pole layout, magnetic waveform, mechanical structure and validation requirements depend on how the machine produces torque or electrical power.
One Partner, End-to-End Coordination
GX is more than a magnet supplier. We deliver complete permanent-magnet rotor assemblies ready for installation.
Our integrated manufacturing resources cover the full process—from magnetic powder preparation, compaction, sintering, precision grinding and multipole magnetization to rotor assembly with automated adhesive dispensing, robotic magnet placement, servo press-fitting and in-line magnetic flux inspection.
Engineering review
Based on the customer’s drawings, proposed design and intended application, GX Magnet evaluate feasibility and recommend an appropriate solution.
| Parameter | Specification / Review Basis |
|---|---|
| Machine Type | PMSM, BLDC motor, permanent-magnet stepper motor, permanent-magnet generator. |
| Rotor Topology | SPM, IPM, multipole ring, segmented-magnet, inner-rotor, outer-rotor or drawing-defined flux-barrier structure. |
| Magnet System | Magnet material, grade, dimensions, coating, magnetization direction, pole count and approved pole map. |
| Electromagnetic Target | Magnetic flux, surface flux-density waveform, back-EMF target or another functional characteristic measured under agreed conditions. |
| Mechanical Interfaces | Rotor OD, stack length, shaft or hub interface, bearing seats, torque-transfer features, fits and functional datums. |
| Retention and Rotation | Adhesive, interference fit, mechanical lock, sleeve or molded interface, together with rated speed, overspeed condition, TIR and balance requirements. |
| Environment and Validation | Operating temperature, duty cycle, fluid or moisture exposure, vibration, sample approval and required inspection records. |
Final dimensions, tolerances, magnetic acceptance criteria and rotational limits follow the approved project drawing and validation plan; they are not common limits for every rotor type.
Project communication
Custom magnetic rotors do not have a standard price. To avoid quoting against incomplete information—and later price revisions or delays—our engineers review the application, drawings and delivery requirements before preparing a formal quotation. GX can usually align these details in a single phone or video call.
GX first confirm the motor type and end use, such as a pump, fan, compressor, household appliance, power tool or automotive system. We also review operating speed, duty cycle, temperature and environment, along with the magnet grade and required magnetic performance, rotor design (surface-mounted, interior or multipole ring), air gap, balance grade and inspection criteria.
GX review the rotor or assembly drawings for dimensions, tolerances, fits and compatibility with the mating shaft and stator. Our engineers can then recommend changes to the material, magnetization, process or structure to improve performance and manufacturability—and reduce cost where feasible.
GX confirm the estimated annual demand, order quantities and schedule from samples through volume production. This helps us plan volume-based pricing, tooling and lead times. We also agree on the supply scope—magnetic components only or a finished rotor assembly—plus packaging, shipping method (courier, air or sea freight), trade terms and destination.

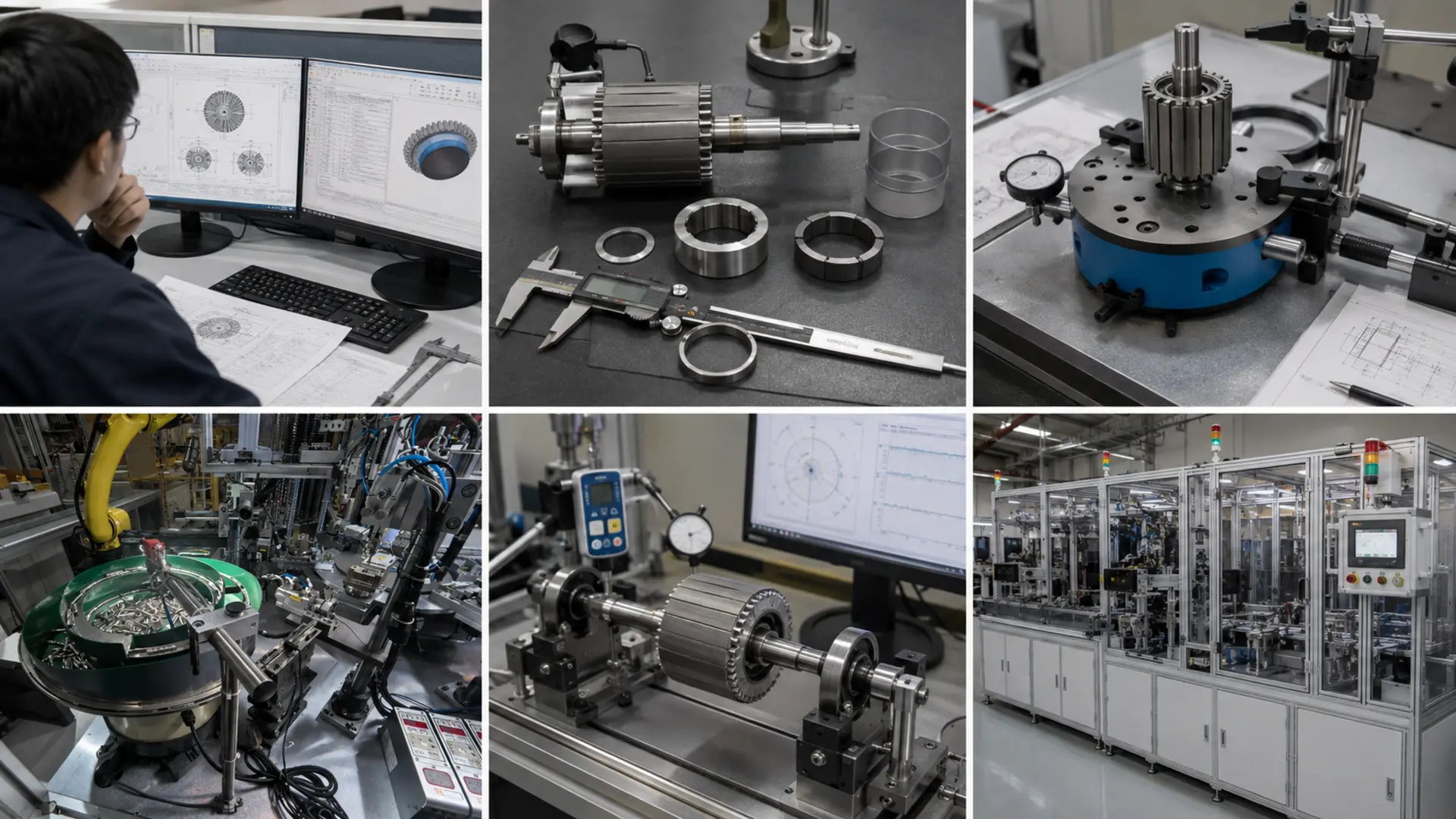

ROTOR ASSEMBLY CONTROL
GX supplies more than individual magnets. We install magnet segments into rotor cores using drawing-defined pole positions and assembly datums. CCD vision positioning, controlled adhesive dispensing, servo-assisted insertion and in-process inspection help carry the approved assembly method from samples into repeat production.
Each segment is positioned to the specified pole sequence and circumferential location. The assembled magnetic surface is checked against the rotor’s reference datum to control runout and support a consistent working air gap.
Adhesive quantity, application position, bond line and curing are controlled during assembly. Where the design requires it, mechanical retention or a sleeve is incorporated to address the loads imposed by operating speed.
Installing magnets changes the rotor’s mass distribution. When dynamic balancing is included in the supply scope, it is performed on the assembled rotor—not inferred from the balance of the bare core. The required grade, such as G2.5 or G6.3, follows the customer’s drawing and operating conditions.
Dedicated fixtures, controlled machine settings and in-process checks reduce reliance on manual magnet placement. Pole position, runout, magnetic output and retention are inspected to the agreed criteria so that production units follow the approved sample.

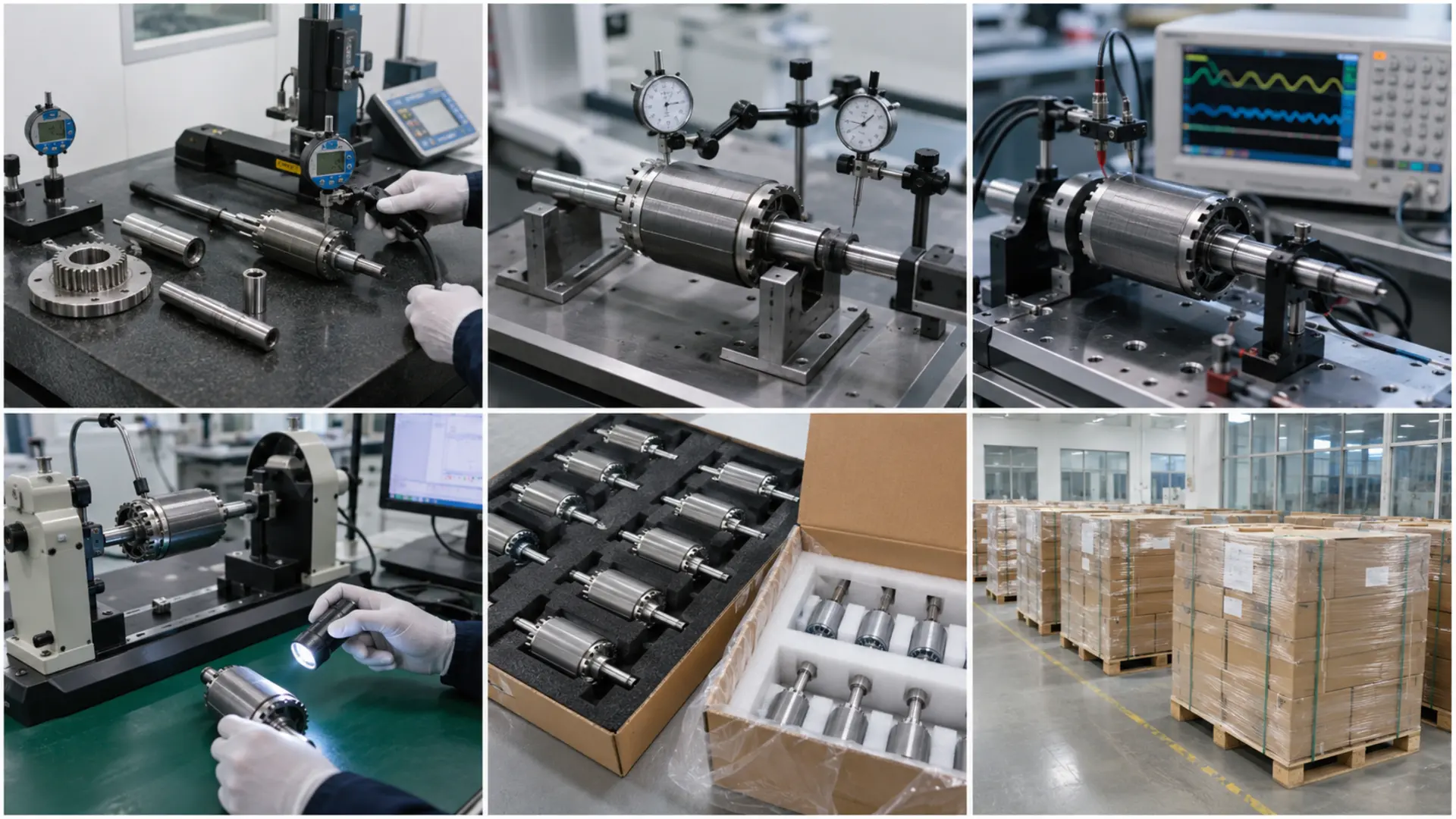

Verification
Inspection follows the approved BOM and drawing across incoming components, assembly interfaces, magnetic results, runout, retention and balance.
| Inspection item | Control approach | Benefit to the customer |
|---|---|---|
| Magnetic performance | Use a fluxmeter, Helmholtz coils and a gaussmeter to conduct 100% inspection of total rotor flux, surface flux density at each pole, polarity, pole count and magnetic flux density waveform. Measure demagnetization curves on batch samples to verify Br, Hcj and (BH)max against the specified grade and temperature rating. Keep magnetic flux within its nominal tolerance. | Ensures the motor meets its torque, back-EMF and efficiency targets, prevents polarity errors, maintains consistent performance across batches and resists demagnetization during long-term high-temperature operation. |
| Dimensions and geometric tolerances | Use calipers, micrometers, optical measuring systems, coordinate measuring machines and runout gauges to perform 100% inspection of critical dimensions, outer-diameter radial runout, coaxiality, roundness and shaft fits against the drawing tolerances. | Ensures the rotor fits and assembles correctly, maintains a uniform air gap, and prevents eccentricity and rotor-to-stator contact. It also helps reduce vibration, noise and uneven bearing wear. |
| Dynamic balance | Balance every rotor using single-plane or two-plane correction and material removal as required. Control residual unbalance to grade G2.5 for high-speed or precision applications, or G6.3 for general applications. | Reduces vibration and high-pitched noise at speed, protects bearings, seals and couplings, and helps extend motor service life. |
| Mechanical reliability and safety | and safetyInspect magnet retention and the integrity of sleeves or overmolded structures. Perform overspeed testing at approximately 1.2 times rated speed, along with press-fit, torque-resistance and pull-off force tests. For NdFeB components, measure coating thickness, conduct salt spray testing, and check for cracks, chipped edges and porosity. | Ensures magnets remain secure at high speed, prevents slipping or detachment during repeated starts and stops, and protects against corrosion in damp environments. |
| Material compliance, traceability and packaging | Provide material certificates or Certificates of Conformity (CoC) for each batch, together with RoHS/REACH compliance documentation. Package magnetized or unmagnetized rotors with appropriate magnetic shielding and protection against moisture and impact. | Provides material traceability and audit records, supports export and automotive quality requirements, and helps ensure safe transport without attracting iron particles while meeting air-freight requirements. |
A permanent-magnet rotor assembly needs more than a strong outer carton. Magnetized parts may require air-freight magnetic-field assessment, while shafts, bearing seats, coatings and installed magnets need protection from movement, moisture and impact. GX Magnet’s magnetic products have been exported to more than 20 countries. For rotor assemblies, we confirm the packing method against the actual part and shipping route.
For magnetized rotors shipped by air, the external field is assessed on the completed package, not the unpacked rotor alone. Pole arrangement, spacing or shielding can be adjusted where needed. GX coordinates the applicable measurement, marking and documentation requirements with the freight provider before dispatch; acceptance depends on the package and the carrier’s current requirements.
For longer shipments, the packing plan considers the magnet coating, exposed steel surfaces and the possibility of condensation. Moisture-barrier materials and desiccants can be used where appropriate, while shafts and bearing seats receive protection suited to their surface condition. Packing materials are selected so they do not damage coatings or interfere with subsequent assembly.
Rotors are individually located within the inner packaging to prevent rolling, part-to-part contact and loading on the shaft ends. Protective covers or separators can be added for bearing seats, magnet faces and other drawing-defined critical surfaces. The outer package is selected according to rotor weight, quantity and the handling expected along the route.
Commercial invoices, packing lists and package identification are prepared against the confirmed order. Certificates of origin, inspection records or magnetic-field assessment documents can be arranged when required by the customer, destination or carrier. The required document set is confirmed before shipment rather than treated as identical for every rotor order.
GX can coordinate with a customer-nominated forwarder or discuss express, air and sea-freight options. The quotation defines the delivery term, shipping point, packing scope, freight and insurance responsibilities, and required documents. Transit estimates are provided for the specific destination and route; they are not presented as a fixed worldwide delivery time.
Application Fit
GX Magnet supplies permanent-magnet rotor assemblies for four main application areas. Each has different performance requirements, material preferences and operating conditions. Our material options and assembly capabilities cover this range of needs.

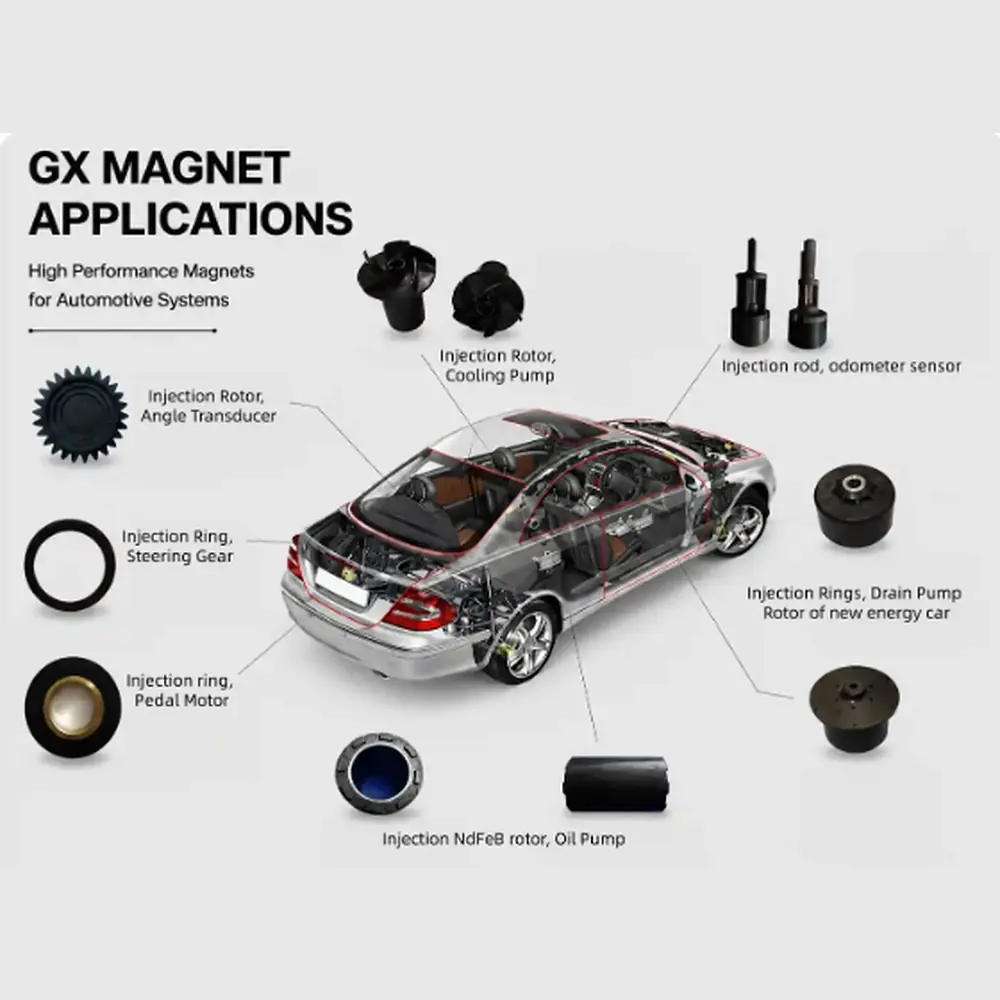

Automotive components must remain reliable across a wide temperature range, under vibration and over a long service life. GX rotors are used in:
Typical rotor types: Injection-molded bonded ferrite rotors, injection-molded bonded NdFeB rotors and multipole sensor rings. Cabin applications may require operating temperatures of up to 150°C.

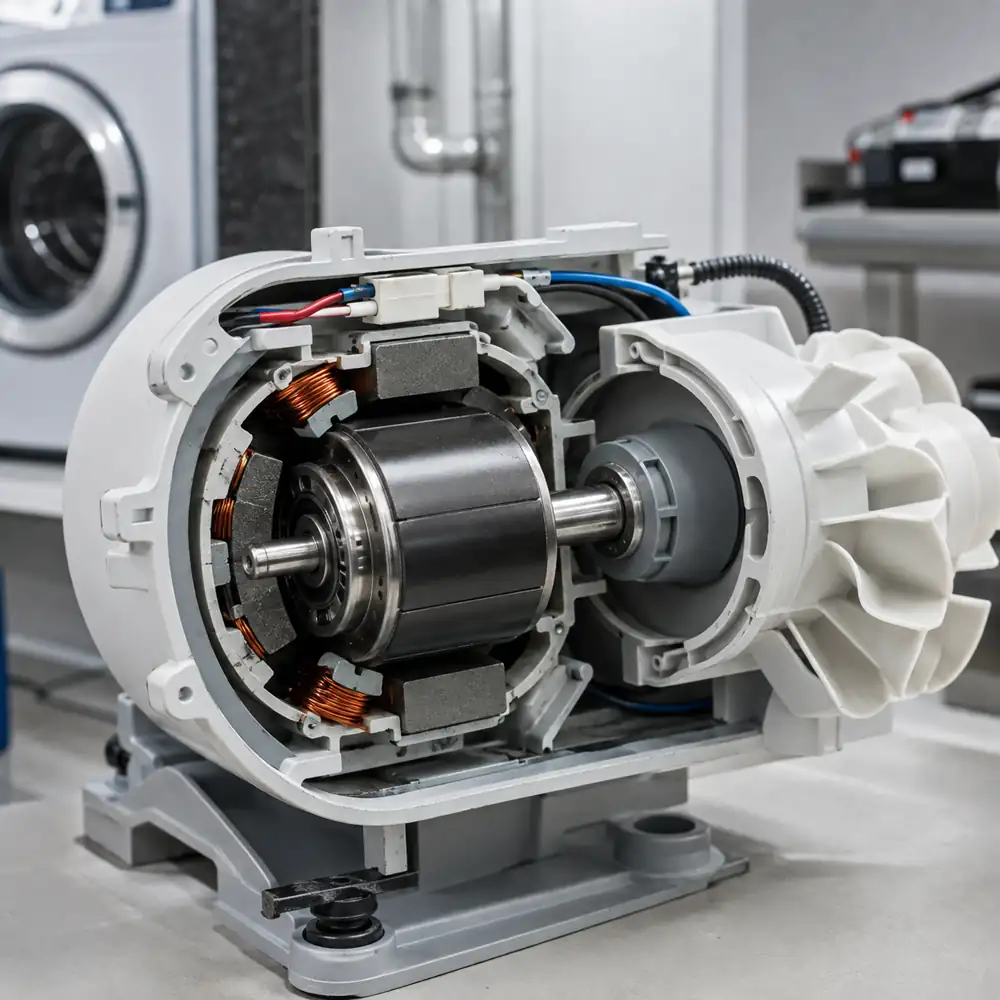

Home appliances require consistent performance at high production volumes, with cost efficiency and low noise as key priorities. GX is a qualified supplier to several major appliance manufacturers. Applications include:

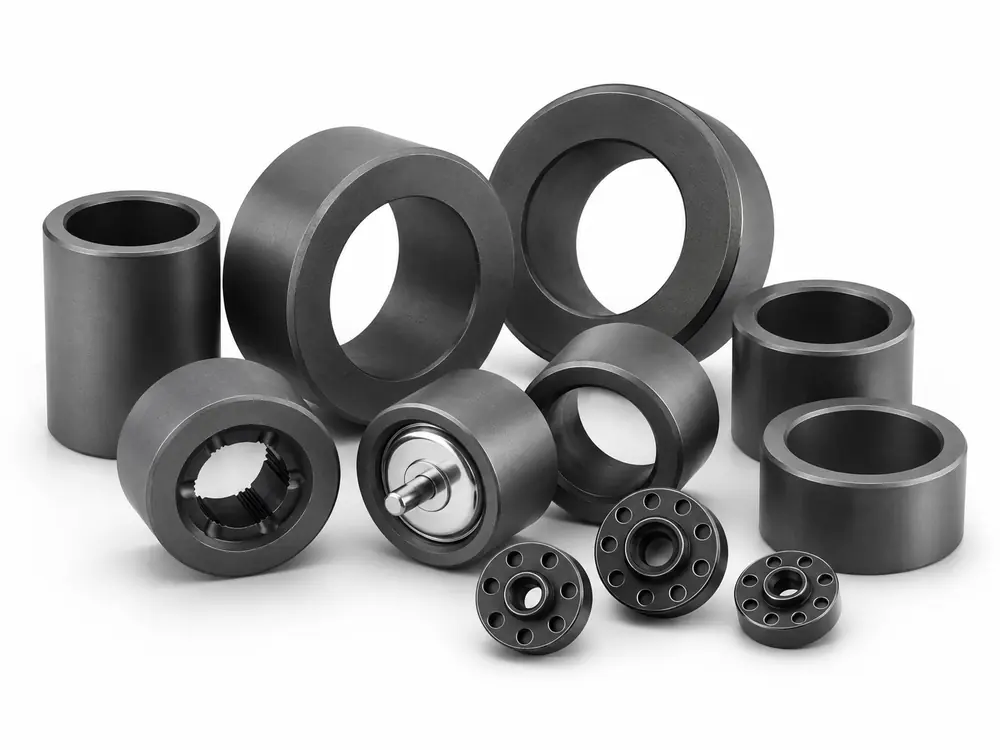

Typical rotor types: Sintered ferrite multipole rings, injection-molded bonded ferrite rotors and axially magnetized ring magnets. Annual demand for a single part number can reach tens of millions of units.
Industrial applications range from low-power sensors to high-torque servo drives. Precision and durability are common requirements across the sector:
Typical rotor types: Sintered NdFeB surface-mounted permanent-magnet (SPM) rotors for servo and high-torque applications; injection-molded bonded ferrite rotors for fans and pumps; and multipole encoder rings for precision position feedback.
Power tools require high power density, rapid acceleration and durability under intermittent heavy loads. Applications include:
Typical rotor types: Sintered NdFeB SPM rotors for high power density, with high-coercivity SH or UH grades for elevated-temperature conditions. Rotors are dynamically balanced to grade G2.5 for smooth high-speed operation.
FAQ
Answers to the rotor-type, drawing, material, interface and validation questions buyers normally resolve before selecting a product route.
GX can review drawing-defined rotor projects for PMSMs, BLDC motors, permanent-magnet stepper motors, permanent-magnet generators and PM-assisted synchronous reluctance motors. Final feasibility and supply scope depend on the approved drawings, BOM and validation requirements.
Both use permanent magnets, and their physical structures may overlap. The distinction normally comes from the motor's back-EMF target, winding and control strategy. Pole arc, magnet topology, waveform, sensor alignment and torque-ripple requirements must therefore be reviewed with the mating stator and controller.
SPM and IPM projects can be evaluated from the complete rotor drawing. The review covers magnet geometry and position, rotor-core features, retention, air-gap surfaces, operating speed and the magnetic or mechanical acceptance criteria specified for the project.
These magnet systems can be reviewed where appropriate, but they are not interchangeable. Magnet geometry, available magnetic output, temperature behavior, corrosion protection, magnetization, retention and rotor space must match the specific machine design.
The reviewed scope may include the rotor core, permanent magnets, shaft, hub, sleeve and retention parts. Bearings, fans, sensor targets or other components are included only when listed in the approved BOM and drawings.
These items can be reviewed when the buyer defines the operating and test speeds, balance grade or residual-unbalance limit, correction planes, measurement datum, overspeed condition and required report.
Acceptance may use magnetic flux, surface flux-density waveform, pole count, pole sequence, circumferential pole position or another agreed functional characteristic. The fixture, air gap, measurement position, magnetization state and test condition must be defined.
Provide the assembly and component drawings, BOM, machine type, mating-stator information, magnet specification, pole map, critical fits and datums, retention method, speed, balance, environment, sample quantity and annual demand.
Request for quotation
Identify the machine type and include the drawings, BOM, magnet system, mating interfaces, operating conditions and required validation.
