Aluminum Die-Cast Housing
ADC12 or A380 reference; 1.5–3.0 mm wall-section review for HPDC, with CT4–CT8 as-cast tolerance and drawing-defined H7/H8 machined interfaces.
DRAWING-BASED CAST HOUSING SUPPLY
Cast Motor Housing Manufacturer
Cast aluminum and cast-iron motor housings produced to released drawings, with casting route, stator bore, bearing and end-cover datums, mounting interfaces and sealing requirements defined before tooling. Critical machined features can be reviewed to H7/H8 fits, 0.03–0.10 mm coaxiality or TIR, and Ra 0.8–3.2 μm where specified.
- Casting route matched to alloy and volume
- Critical bores controlled to drawing datums
- Porosity and leakage risks reviewed early

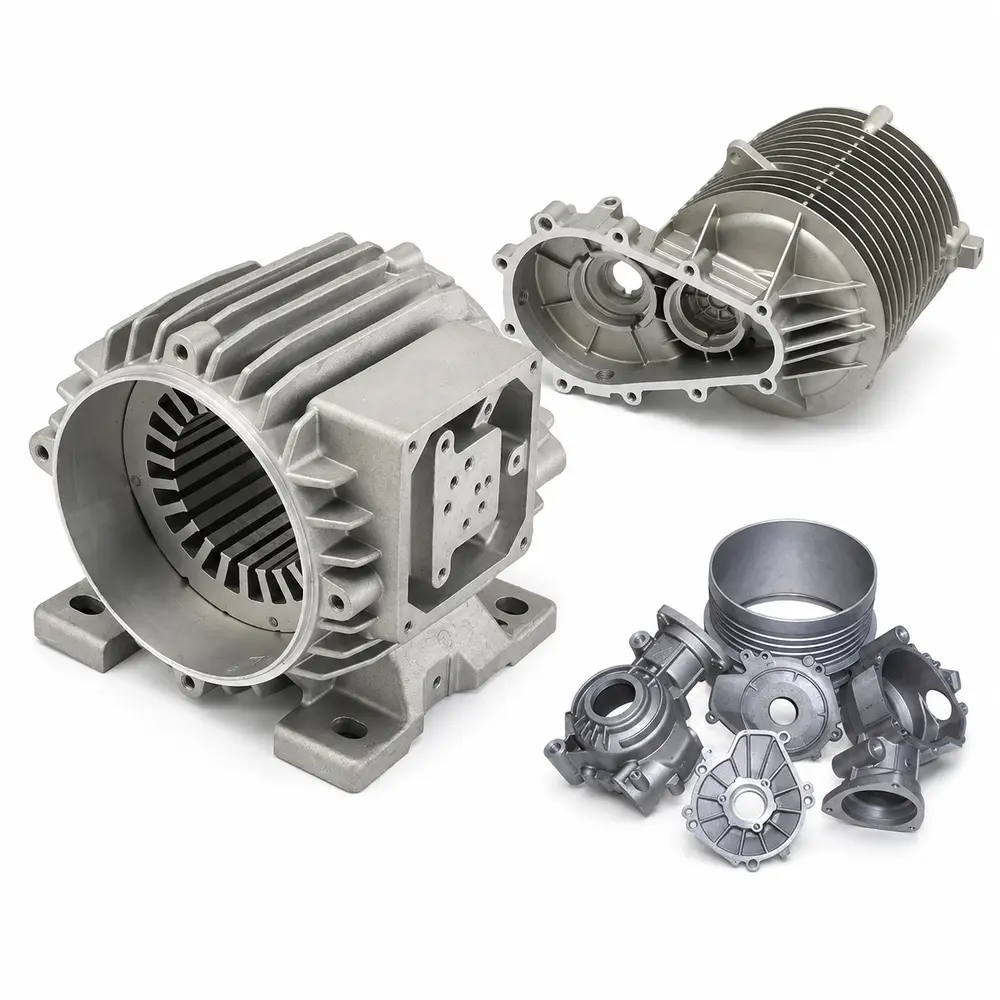

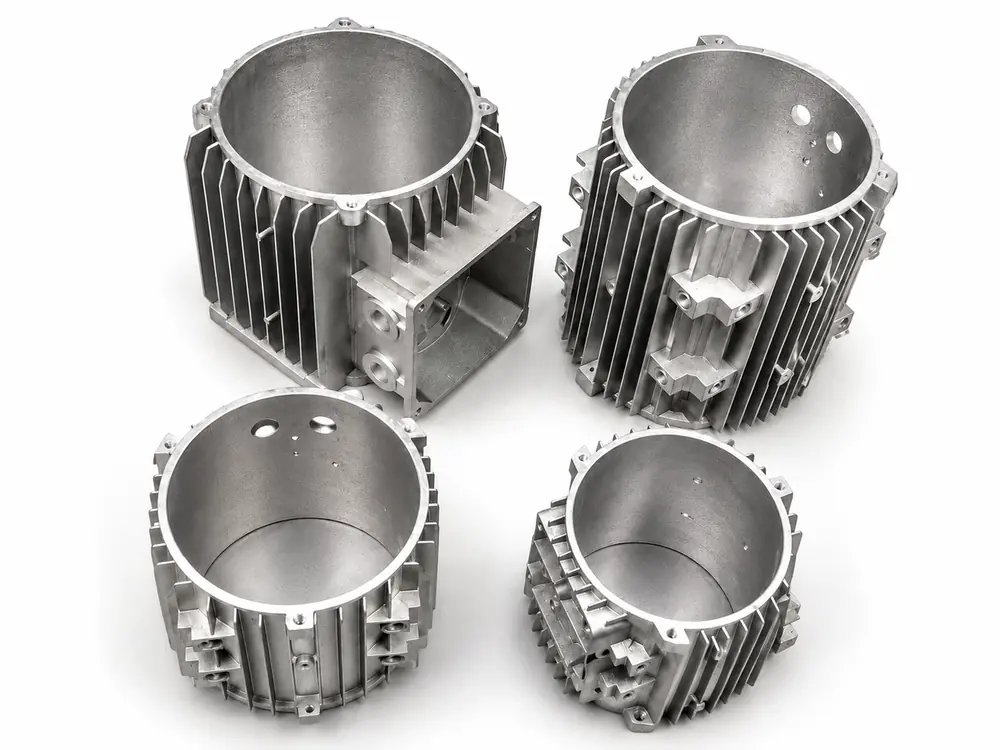

Product routes
Match the Casting Route to Geometry, Load and Production Volume
Casting route and material are selected around wall section, ribs, mounting features, machining stock, thermal duty, sealing requirements and expected annual volume.
FOR A FASTER QUOTATION
What to Send for a Faster Cast Motor Housing Quote
Send the drawing, material, quantity and key acceptance requirements together. A complete RFQ package reduces clarification rounds and allows casting, machining and inspection costs to be reviewed at the same time.
Drawing, geometry and interfaceProvide the 2D/3D drawing and revision: wall sections, draft, ribs, bosses, bearing bores, machined datums, tolerances and porosity boundary.
Material and functional targetConfirm drawing-specified aluminum alloy, iron or other cast material plus the project casting route; state thermal and electrical requirements assigned to the housing design.
Operating boundaryState temperature, coolant pressure, corrosion, ingress, coating and cleanliness.
Demand and acceptanceConfirm sample and annual demand, drawing revision, casting/dimensional evidence and leakage test when specified.
Technical parameters for quotation
Define Cast Motor Housing Requirements Before Quotation
Use these inputs to align material, casting route, machining, sealing and inspection before quotation. Reference ranges support RFQ review; final requirements follow the released drawing and acceptance plan.
| Parameter group | Project-specific review basis | Release basis |
|---|---|---|
| Material / Casting Route | ADC12, A380, A356 or HT200–HT250 reference; HPDC, LPDC, gravity or sand casting selected around geometry and volume. | Released alloy specification, casting process and material record. |
| Casting Geometry | Wall section, draft, ribs, bosses and machining stock; HPDC wall sections may be reviewed around 1.5–3.0 mm where geometry allows. | Released drawing dimensions, casting tolerance and tooling baseline. |
| Critical Machined Features | Stator bore, bearing seat, end-cover pilot and mounting faces; H7/H8, CNC ±0.05 mm and coaxiality/TIR 0.03–0.10 mm as project references. | Drawing-defined fits, datums, tolerances and inspection method. |
| Surface / Finish | Machined surfaces may be reviewed to Ra 0.8–3.2 μm; coating, masking and corrosion requirements defined by application. | Released finish specification, protected interfaces and acceptance criteria. |
| Sealing / Cooling | Coolant passages, sealing faces and water jackets; leak-test reference 0.2–0.5 MPa, with proof pressure up to 1.5–2× working pressure where specified. | Agreed medium, pressure, hold time and allowable leakage. |
| Inspection / Acceptance | Material evidence, CMM or dimensional reports, roundness, roughness, coating and leakage checks as required. | Agreed inspection plan, sampling level and critical-characteristic limits |
| Supply Boundary | As-cast housing, machined casting, finished housing or drawing-defined inserted hardware and mechanical assembly. | Released BOM and quoted supply scope. |
Why choose us for your project
Choose the Casting Route Before Tooling Locks In Cost and Risk
GX reviews alloy, wall section, draft, ribs, machining stock and sealing boundaries before tooling. ADC12/A380 HPDC projects may be reviewed around 1.5–3.0 mm wall sections, while cast-iron housings typically follow wider sand-casting tolerance bands such as CT8–CT12.
- Define: Alloy, casting route, wall section, draft and machining stock before tooling release.
- Reduce: Avoid late tooling changes caused by porosity zones, thin walls or inaccessible machining features.
Why choose us for your project
Link Cast Datums to Stator Bores, Bearing Seats and Mounting Faces
Critical interfaces are machined from a defined datum system instead of being controlled as isolated dimensions. Project references can include H7/H8 fits, CNC tolerances around ±0.05 mm, coaxiality or TIR of 0.03–0.10 mm and Ra 0.8–3.2 μm on specified machined surfaces.
- Before machining: Define datum relationships between stator bore, bearing seat, end-cover pilot and mounting faces.
- After machining: Verify the critical interfaces as one assembly-related geometry rather than separate dimensions.
Why choose us for your project
Verify Porosity, Machined Geometry and Sealing Before Repeat Supply
Casting defects can remain hidden until machining exposes a pore or a sealing surface fails. GX can combine dimensional inspection with casting-integrity and leakage criteria; leak-test references may be 0.2–0.5 MPa, with water-jacket proof pressure reviewed at 1.5–2× maximum working pressure where specified.
- Sample approval: Confirm machined dimensions, surface condition, porosity or leakage criteria against the released drawing.
- Repeat supply: Carry the approved inspection method, lot traceability and critical-characteristic limits into recurring production.
Final values apply to production only after confirmation in the released drawing, approved specification, quotation and acceptance plan.
Product and supply scope

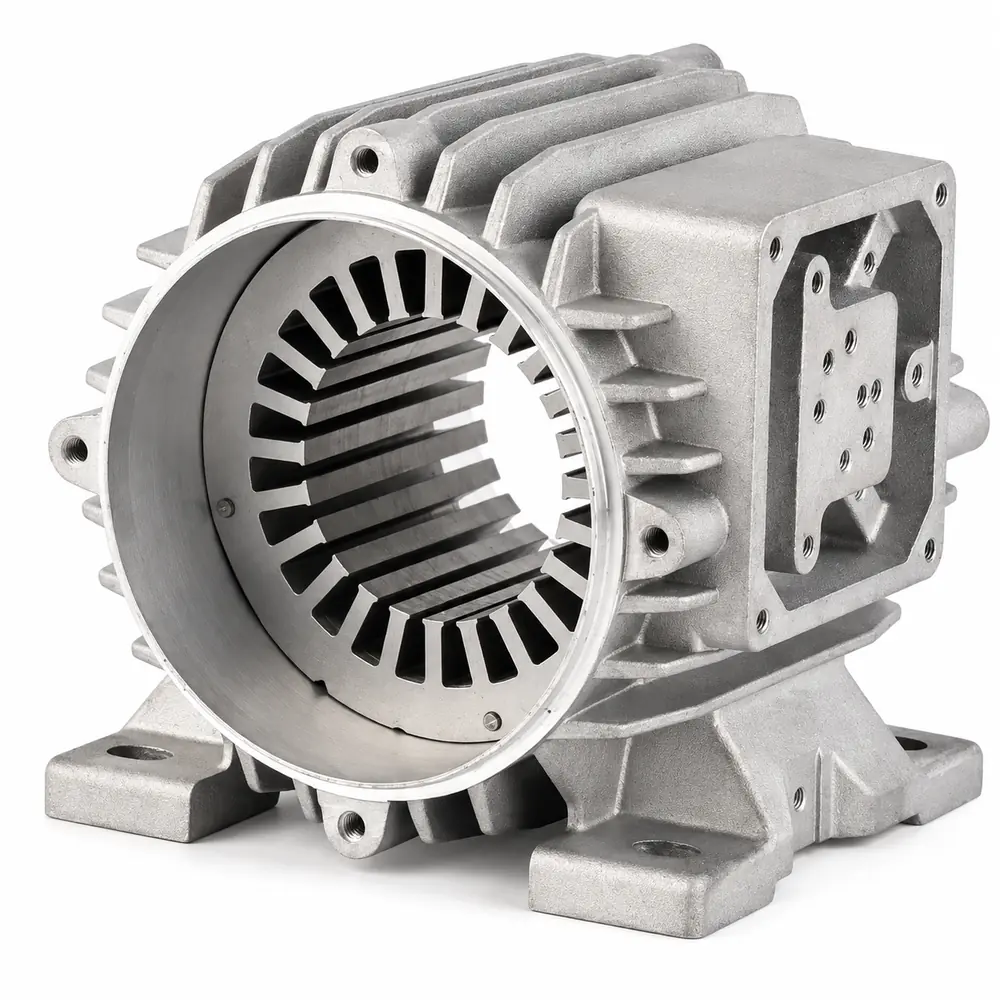

What Is a Cast Motor Housing?
A cast motor housing is the structural enclosure that locates the stator, bearings and end covers, carries mounting loads and transfers heat away from the motor. Unlike a fabricated shell, its ribs, bosses, mounting feet and cooling features are formed as part of the casting. Performance depends on the selected alloy and casting route, wall-section design, porosity control and the relationship between critical machined interfaces. Drawing-defined stator bores, bearing seats and end-cover pilots may be reviewed to H7/H8 fits, 0.03–0.10 mm coaxiality or TIR, and Ra 0.8–3.2 μm on specified machined surfaces. GX supplies cast housings according to the released drawing, machining scope, surface finish and approved BOM.
Project route
Control Casting Risk Before Critical Machining
The manufacturing route links casting DFM, alloy control, forming, stabilization, critical machining and surface preparation around one released drawing.
Requirement Review
Review CAD, GD&T, wall sections, datums, sealing boundaries, machining stock and expected volume.
Casting DFM
Review draft, ribs, bosses, gates, overflow, local wall thickness and porosity-sensitive zones before tooling.
Melt & Cast
Control the specified alloy or iron grade, melt condition and project-defined casting parameters through the selected route.
Trim, Clean & Stabilize
Remove gates, flash and residues; apply blasting, cleaning or project-defined stabilization before machining.
Critical Machining
Machine stator bores, bearing seats, end-cover pilots and mounting faces from the released datum system.
Surface Preparation
Deburr, clean and prepare coating, masking and sealing surfaces according to the released finish requirement.
Verification
Verify Geometry, Casting Integrity and Sealing Against One Released Revision
Inspection links dimensional accuracy, internal casting condition and sealing performance to the interfaces that control actual motor assembly and service.
| Control item | Method / evidence | Buyer benefit |
|---|---|---|
| Material / casting | Material certificate or spectrometer result, hardness where specified, plus visual casting-condition review. | Confirms the specified grade and basic casting condition. |
| Critical geometry | CMM, bore gauges, roundness and roughness measurement for stator bores, bearing seats and mounting datums. | Controls alignment, fits and assembly variation. |
| Internal integrity | X-ray, CT or agreed destructive verification where required; defect size and location limits follow the drawing or acceptance standard. | Keeps unacceptable porosity away from machined, loaded and sealed zones. |
| Sealing boundary | Air-decay, pressure-decay, water or helium testing according to the defined medium, pressure and leak-rate criteria. | Confirms pressure integrity of water jackets and sealed interfaces. |
| Surface / cleanliness | Coating thickness, masking, surface condition and residual-particle or cleanliness checks where specified. | Protects mating surfaces, sealing interfaces and downstream assembly. |
Application fit
Where Cast Motor Housing Fits OEM Motor Designs
Application requirements are defined by load, thermal path, sealing and mating interfaces—not by housing shape alone.

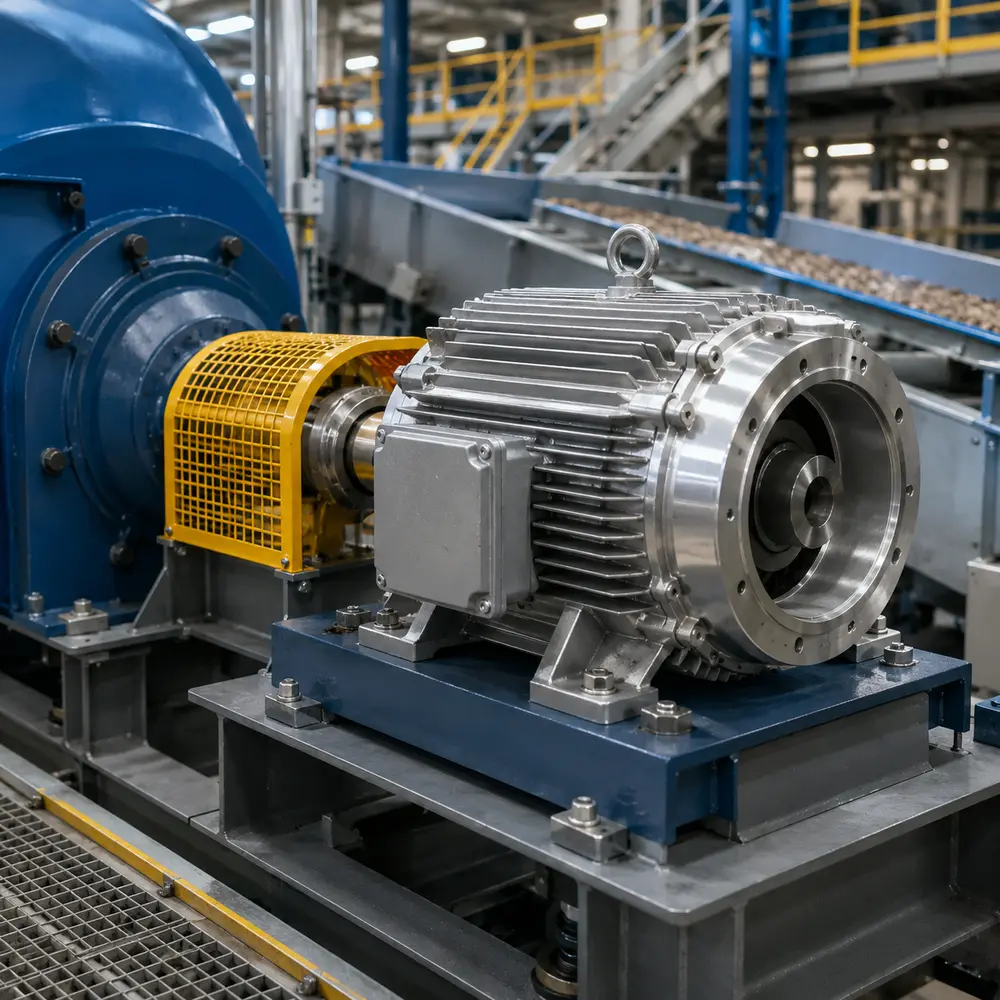

Industrial Motors
Cast frames support stator location, bearing alignment and mounting loads. Drawing-defined bores and pilots may use H7/H8 fits, with Ra 0.8–3.2 μm on specified machined surfaces.

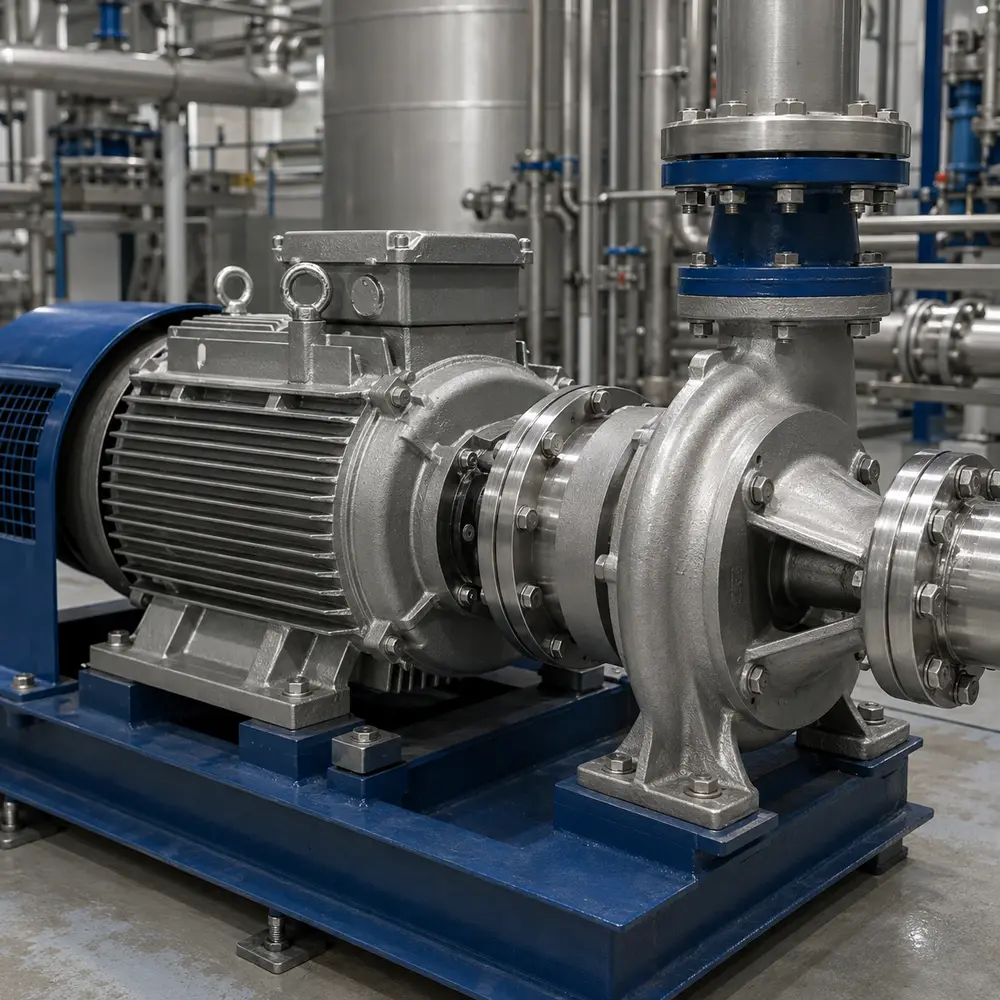

Pumps and Compressors
Housing accuracy must maintain shaft alignment while protecting sealing and fluid interfaces. Critical coaxiality or TIR can be reviewed within 0.03–0.10 mm where specified.

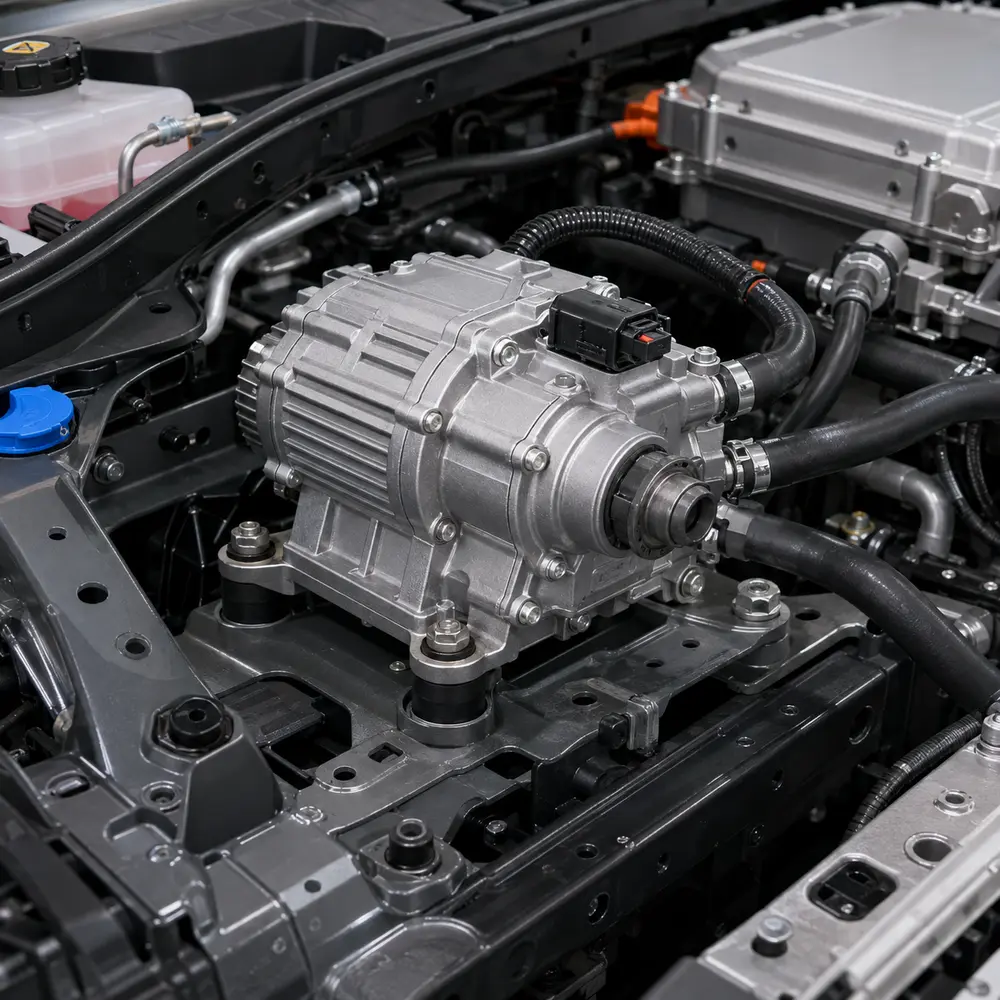

Automotive Auxiliary Drives
Compact cast housings combine mounting stiffness, heat transfer and controlled machining interfaces. HPDC designs may review wall sections around 1.5–3.0 mm where geometry allows.
Liquid-Cooled Drives
Water jackets add sealing and pressure requirements to the cast housing. Leak testing may reference 0.2–0.5 MPa, with proof pressure reviewed at 1.5–2× maximum working pressure.
Project control
Documented Control for Drawing-Based Cast Motor Housing Supply
GX maintains drawing revision, material and process requirements, sample approval and critical-characteristic records against the agreed project scope. Certification claims apply only to the documented company, process and product scope.
Revision and BOM Control
Housing material, casting route, machined interfaces, surface finish, supplied components and acceptance criteria follow the current released drawing and BOM.
Sample Approval
Critical dimensions, machined fits, surface condition and project-specific tests are recorded to establish the approved production baseline.
Production Control
Defined inspection methods, fixtures, sampling plans and acceptance limits are carried into recurring production. Where capability is specified, Cpk ≥1.33 can be used as the reference target for defined critical characteristics.
Project evidence is defined during quotation and may include material records, dimensional or CMM reports, casting-integrity results, surface roughness, coating, leakage and marked-drawing inspection records.
Engineering and sourcing FAQ
Cast Motor Housing Questions Before RFQ and Production Release
Eight practical questions covering casting selection, drawing definition, machining interfaces, porosity, sealing, inspection and production release.
How do Cast motor housings differ from die-cast, gravity-cast and machined housings?
The difference is determined by motor architecture, load path, bearing arrangement, cooling and manufacturing route. Compare the drawing interfaces and validation requirements rather than choosing by frame appearance alone.
Which material and process are suitable for Cast motor housings?
Review alloy, casting process, wall thickness, porosity boundary and production volume. The selected route must support the required datum structure, machining access, thermal behavior, surface treatment and projected volume.
Which dimensions are critical on Cast motor housings?
The critical dimensions are those controlling rotor-stator alignment and final assembly. Typical review points include bearing bores, mounting datums, concentricity, face runout and machined interfaces, but the customer drawing must identify the functional datum scheme and inspection priority.
How are bearing bores and mounting faces controlled on Cast motor housings?
Control them from a consistent machining datum and verify the relationship, not only each size independently. The acceptance plan should define bore size, position or concentricity, face runout and the gauge or CMM method.
When do Cast motor housings require leakage or porosity testing?
Testing is required when the housing forms a sealed cavity, coolant path or specified environmental barrier. Define porosity or leakage criteria, coating, corrosion exposure and heat dissipation, test pressure or method, allowable leakage and the surfaces included in the test boundary.
How should finished Cast motor housings be inspected?
Inspection should combine material or casting checks with critical machined dimensions, datum relationships, thread and surface-condition checks. Coating thickness, cleanliness, leakage or packaging controls are added only when the released specification requires them.
What information should an RFQ for Cast motor housings include?
Provide 2D drawings and 3D data, material and process preference, bearing bores, mounting datums, concentricity, face runout and machined interfaces, porosity or leakage criteria, coating, corrosion exposure and heat dissipation, annual quantity and acceptance method. Identify supplied inserts, machining scope, surface treatment and any required test fixtures.
How are first articles approved for Cast motor housings?
Agree the drawing revision, datum strategy, critical-characteristic list and inspection method before production approval. The first-article package should record results and approved deviations; recurring supply follows the released drawing, quotation and control plan.
Request for quotation
Request a Quote for a Cast Motor Housing
Send 2D/3D files, mating interfaces, material and process requirements, operating limits, surface finish, sample quantity, annual demand and validation expectations.
- Housing dimensions, datums, critical fits and GD&T
- Stator, end-cover, bearing, mounting, connector and sealing interfaces
- Material, forming route, machining, treatment and supplied BOM boundary
- Temperature, speed, load, cooling, environment and acceptance plan
